StairSafe Handrail Set

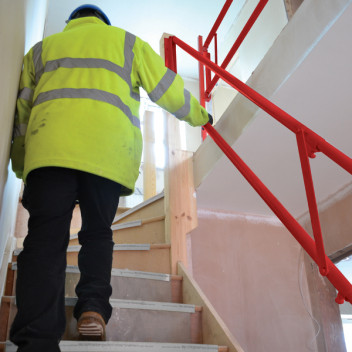

Staircases and balustrades are often only installed once the build is complete in order to prevent damage during construction. The StairSafe handrail set is part of a range of products which can be used help to meet the stringent Health & Safety regulations imposed on construction sites, which states that protection barriers must be fitted for works carried out at a height.

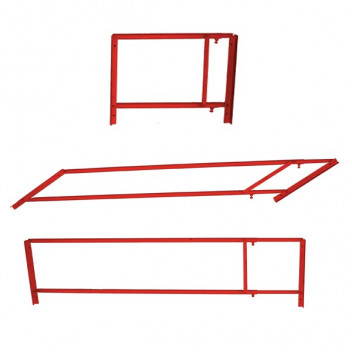

The StairSafe system includes the handrail set (1x short and 2x long handrails) which are specifically designed to work with a range of StairSafe posts. The handrails are adjustable, short from 750?1200mm (8kg) and long from 2500?3500mm (15kg). Alternatively the StairSafe handrails can be fixed directly to newel posts without the need for StairSafe posts.
StairSafe posts are manufactured from 30mm steel box section welded to a pre-drilled base plate, and are available in standard (straight), corner and stringer post configurations. All the posts have provision to screw fix a kickboard and have pre-drilled 40mm (w) x 100mm (h) mid-rail and handrail brackets. Posts should be secured using the appropriate fixings to timber decking, concrete floors and stairs to form a sturdy safety barrier.
• Handrail lengths: Short 750mm-1200mm, Long 2500mm-3500mm
• StairSafe handrails are suitable for use with StairSafe posts or can be fixed directly to newel posts
• StairSafe posts available in corner, standard and stringer configurations
• StairSafe handrails with top and bottom newel post fixing also available
Attributes
Product attributes
| Dimensions | 1 x Short & 2 x Long Barriers |
|---|---|
| Impact Resistant | Yes |
| Metal Recyclable | Yes |
| Reusable | Yes |
